BW-300/12 MUD PUMP 2103X940X1130 45kw Drilling Mud Pumps

Place of Origin:

Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

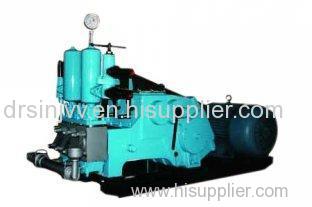

BW-300/12 MUD PUMP<

BW-300/12 MUD PUMP

BW-300/12 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 3000 meter.BW-300/12 is mainly used to equip with core drilling rig to make less than 3000 meters drilling.

Specifications:

1.horizontal, triplex, single acting
2.four shifts of flow rates&pressures
3. smooth rotation
4.longer service life

MODEL	BW-300/12
TYPE	Horizontal, Triplex, Single Acting Reciprocating pump
STROKE (mm)	110
LINER DIA. (mm)	75
STROKES (min^-1)	206 151 112 82
DISPLACEMENT (L/min)	300 220 160 120
PRESSURE (Mpa)	6.0 8.0 10.0 12.0
INPUT POWER (kW)	45
SUCTION PIPE DIA. (mm)	76
DISCHARGE PIPE DIA.(mm)	51
DRILLING HOLE DEPTH	Diamond Core Drilling <3000m Tungsten Carbide Drill <2000m
DIMENSION (mm)	2103X940X1130
WEIGHT	750KG

BW300/12 pump is a horizontal, triplex, single acting reciprocation piston pump.

BW300/12 pump can also be used as a mud-pump cooperating drilling machines with large caliber no more than 1500m,or be used as a cooperative pump with the percussive rotary drilling.

BW300/12 pump has four shifts of flow rates and four shifts of pressures, which can meet any grouting or drilling better. Comparing to some other pump with same specifications,

BW300/12 pump has advantages such as smooth rotation, large-scale variable rates of flow, high output pressures, longer service life of the wearing parts and steady performance, etc.
