BW-320 MUD PUMP 1280*855*750 30kw Drilling Mud Pumps manufacturer from China Sinocoredrill Group Co.,Ltd

BW-320 MUD PUMP 1280*855*750 30kw Drilling Mud Pumps

BW-320 MUD PUMP 1280855750 30kw Drilling Mud Pumps

Place of Origin:

Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

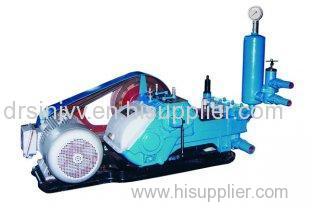

BW-320 MUD PUMP
BW-320 MUD PUMP is singl

BW-320 MUD PUMP

BW-320 MUD PUMP is single-acting triplex-plunger pump suitable for core drilling within 2000 meters and hydraulic percussive drilling within 1000 meters. It can fit for 80mm cylinder and 60mm cylinder according to clients' demands. It has reliable structure,long life,convenient and low maintenance.

Specifications:

1,Horizontal, triplex, reciprocating, single acting piston pump
2,2 kinds cylinder diameters,4 gears
3,mud and cement capable

BW-320 MUD PUMP
Type	Single-acting triplex plunger
Stroke	110mm
Bore	80mm	60mm
Pump speed (s.p.m)	214, 153, 109, 78	214, 153, 109, 78
Output volume (l.p.m)	320, 230, 165, 118	180, 130, 92, 66
Discharge pressure (Mpa)	4.0, 5.0, 6.0, 8.0	6.0, 8.0, 9.0, 10.0
Input power (Kw)	30
Suction pipe dia (mm)	75
Discharge pip dia (mm)	50
Drilling hole depth (m)	Diamond core drilling < 3000
	Conventroxal core drilling < 2000
Weight (Kg)	650 (without power)
	1000 (with motor)
Overall dimensions (mm)	1280855750
